High Strength Steel Frame

1 of 4

360 degree handle rotation with short stroke to ratchet loads.

2 of 4

Drop Forged Hooks that are designed to bend slowly to warn of overloads

3 of 4

Load chain is alloy grade 80

4 of 4

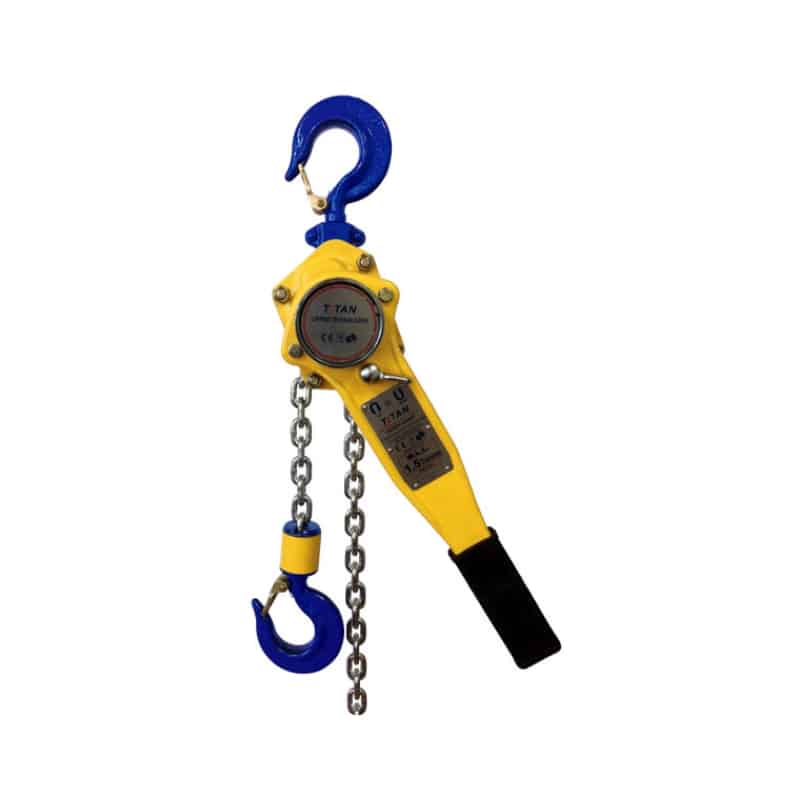

Titan TLH Lever Hoist

Features

  • High strength steel frame and gear case built to be durable for rugged needs of construction and maintenance rigging.
  • 360 degree handle rotation with short stroke to ratchet loads.
  • Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads.
  • Load chain is alloy steel grade 80 in accord with ISO3077 and EN818.7 standards.
  • Overload protection system. (Optional)
  • Caged needle roller bearings on load sheaves.
  • Cast safety latches.
  • Thrust bearings in bottom hook assembly.
  • Special surface treatment of spare parts.
  • Complies with AS/NZ1418 standard, also meets all pertinent world standards.
  • Proof tested 1.5 x W.L.L.

Quality Tested

Every Batch of Hoists is quality tested to ensure the highest standard

Proof Tested

Proof Tested to 1.5 x W.L.L.

Lifting Hotline

Call our Lifting hotline and let our experts tell you what you need to get the job done

Best Aftersales Support

We have your back!

Free Service

Dial the Experts before you lift

Call: +61 3 9466 7840

  • Step 1

    Call us to discuss your situation

  • Step 2

    We'll let you know the right equipment you need to do the job.

  • Step 3

    We'll give you instructions on how to use it safely
